Question 22: Electrostats & Capacitance

Question

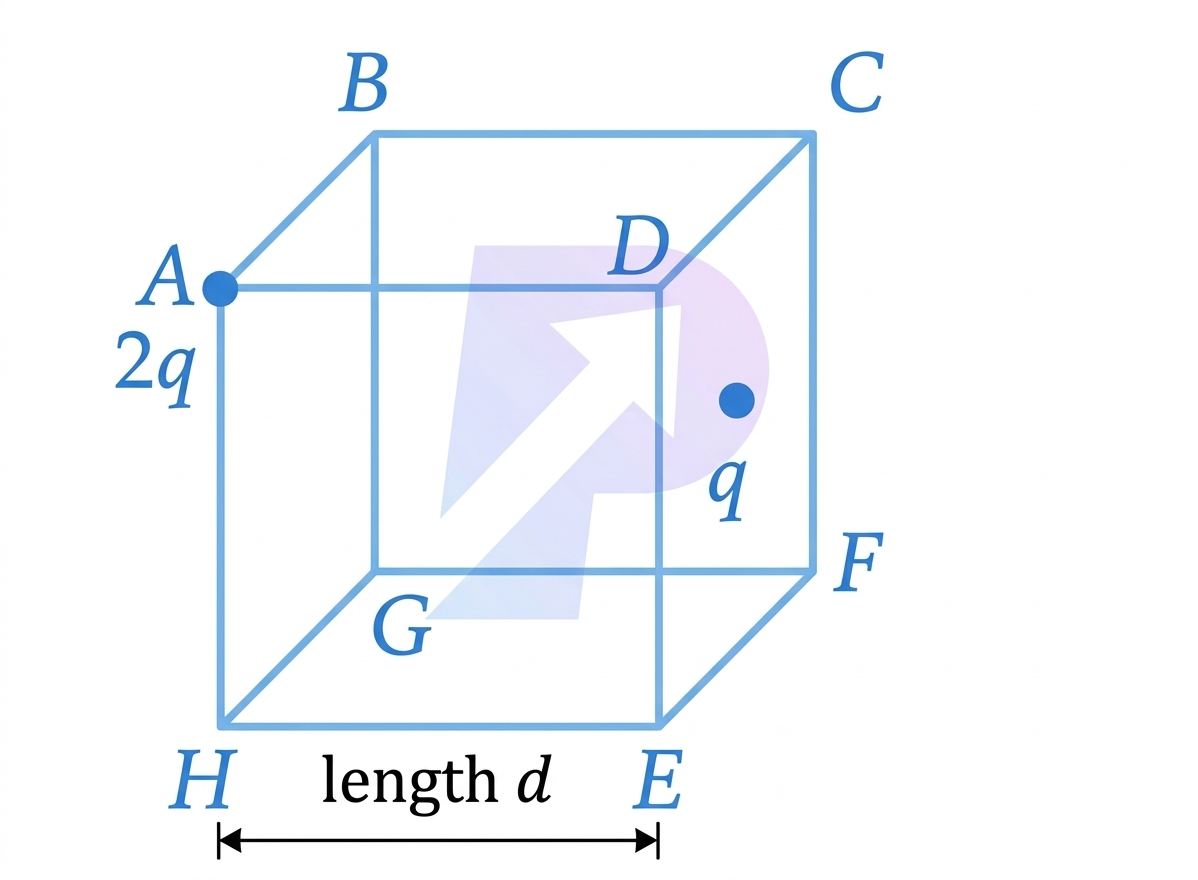

Two point charges $2q$ and $q$ are placed at vertex $A$ and centre of face $CDEF$ of the cube as shown in figure. The electric flux passing through the cube is:

Accepted Answer

NA

Answer

A. $\frac{3q}{2\epsilon_0}$

Answer

B. $\frac{3q}{4\epsilon_0}$

Answer

C. $\frac{q}{\epsilon_0}$

Answer

D. $\frac{3q}{\epsilon_0}$

Electrostats & Capacitance

Two point charges 2q and q are placed at vertex A and centre of face CDEF of the cube as shown in figure. The electric flux passing through the cube is:

Choose the correct answer:
